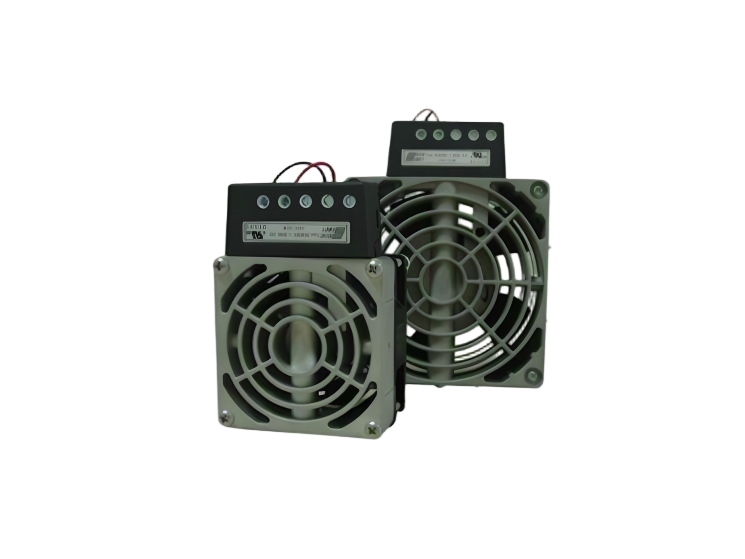

一体化风扇加热器
使用寿命长
免维护
过温保护
产品特性
✓ 设计紧凑
✓ 免维护
✓ 使用寿命长
✓ 卡扣式和平面安装
✓ 过温保护
✓ 大风量设计
✓ 有效防止结露形成
技术参数
|
型号（不含风扇） |
工作电压 |
加热功率 |
重量 |
长度 |
|
BSAH01.0.A120.100 |
120VAC,50/60Hz |
100W |
0.4kg |
80 x 112 x 22mm |
|
BSAH01.0.A240.100 |
240VAC,50/60Hz |
100W |
0.4kg |
80 x 112 x 22mm |
|
BSAH01.0.A120.150 |
120VAC,50/60Hz |
150W |
0.4kg |
80 x 112 x 22mm |
|
BSAH01.0.A240.150 |
240VAC,50/60Hz |
150W |
0.4kg |
80 x 112 x 22mm |
|
BSAH01.0.A120.200 |
120VAC,50/60Hz |
200W |
0.4kg |
80 x 112 x 22mm |
|
BSAH01.0.A240.200 |
240VAC,50/60Hz |
200W |
0.5kg |
119 x 151 x 22mm |
|
BSAH01.0.A120.300 |
120VAC,50/60Hz |
300W |
0.5kg |
119 x 151 x 22mm |
|
BSAH01.0.A240.300 |
240VAC,50/60Hz |
300W |
0.5kg |
119 x 151 x 22mm |
|
BSAH01.0.A120.400 |
120VAC,50/60Hz |
400W |
0.5kg |
119 x 151 x 22mm |
|
BSAH01.0.A240.400 |
240VAC,50/60Hz |
400W |
0.5kg |
119 x 151 x 22mm |
|
型号（含风扇） |
工作电压 |
加热功率 |
风量 |
重量 |
长度 |
|
BSAFH01.1.A120.110 |
120VAC,50/60Hz |
110W |
35m³/h |
0.6kg |
80 x 112 x 57mm |
|
BSAFH01.1.A240.110 |
240VAC,50/60Hz |
110W |
35m³/h |
0.6kg |
80 x 112 x 57mm |
|
BSAFH01.1.A120.160 |
120VAC,50/60Hz |
160W |
35m³/h |
0.6kg |
80 x 112 x 57mm |
|
BSAFH01.1.A240.160 |
240VAC,50/60Hz |
160W |
35m³/h |
0.6kg |
80 x 112 x 57mm |
|
BSAFH01.1.A120.210 |
120VAC,50/60Hz |
210W |
108m³/h |
0.9kg |
119 x 151 x 57mm |
|
BSAFH01.1.A240.210 |
240VAC,50/60Hz |
210W |
108m³/h |
0.9kg |
119 x 151 x 57mm |
|
BSAFH01.1.A120.310 |
120VAC,50/60Hz |
310W |
108m³/h |
0.9kg |
119 x 151 x 57mm |
|
BSAFH01.1.A240.310 |
240VAC,50/60Hz |
310W |
108m³/h |
0.9kg |
119 x 151 x 57mm |
|
BSAFH01.1.A120.410 |
120VAC,50/60Hz |
410W |
108m³/h |
0.9kg |
119 x 151 x 57mm |
|
BSAFH01.1.A240.410 |
240VAC,50/60Hz |
410W |
108m³/h |
0.9kg |
119 x 151 x 57mm |
|
BSAFH01.1.D48.110 |
48 VDC |
110W |
35m³/h |
0.6kg |
80 x 112 x 57mm |
|
BSAFH01.1.D48.160 |
48 VDC |
160W |
35m³/h |
0.6kg |
80 x 112 x 57mm |
|
BSAFH01.1.D48.210 |
48 VDC |
210W |
108m³/h |
0.9kg |
119 x 151 x 57mm |
|
BSAFH01.1.D48.310 |
48 VDC |
310W |
108m³/h |
0.9kg |
119 x 151 x 57mm |
|
BSAFH01.1.D48.410 |
48 VDC |
410W |
108m³/h |
0.9kg |
119 x 151 x 57mm |
